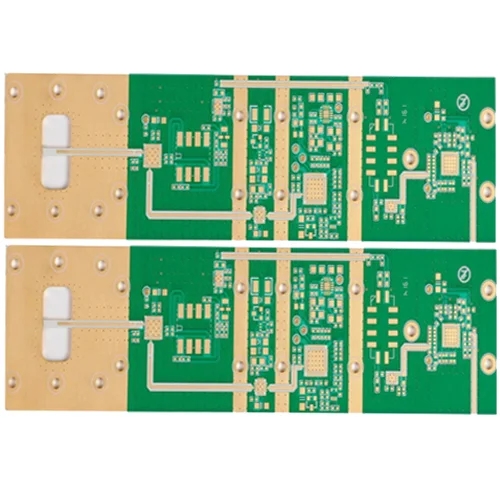

aconic PCB is a printed circuit board manufactured using Taconic PCB material. These materials are ceramic filled polytetrafluoroethylene and glass fiber reinforced materials. These boards are suitable for RF applications in the communication and aerospace industries.

This type of printed circuit board has low dielectric loss and electrical signal loss, making it an ideal choice for various applications. This circuit board aims to meet the growing demand of the electronic world. Taconic PCB provides various dielectric constant values.

Taconic is a well-known brand in the field of RF laminates. It provides printed circuit boards for manufacturing high-performance digital boards, multi-layer RF, and other electronic devices. Taconic laminates can be milled, plated, and cut using standard methods.

What is the difference between a Taconic PCB and an Isola PCB?

Many people want to know the difference between Taconic and Isola PCBs. These two types of printed circuit boards have similar advantages, but each is different. Taconic PCBs use ceramic filled PTFE or glass reinforced PTFE PCBs to provide thermal and electrical stability.

Taconic panels utilize thermoplastic prepregs and thermosetting materials to meet the needs of high-performance panels. These boards are very suitable for microwave or RF design.

Meanwhile, the Isola PCB is manufactured using copper clad plates and dielectric prepregs. These laminates have resin compositions that meet the needs of high-performance applications. Isola PCB has excellent mechanical, thermal, and electrical characteristics. These characteristics provide materials that exceed FR-4.

Taconic and Isola PCBs are designed specifically for high-speed and high-performance applications, but these boards use different materials in production.

Advantages of Taconic PCB

Low cost: When making such circuit boards, low cost is required. For engineers, it has always been an affordable choice. This ceramic filled laminated board is worth the money.

Low dielectric loss: Low dielectric loss laminates are an ideal choice for RF and microwave applications. The dielectric loss of Taconic is very low. The low dielectric loss of this material is a result of its dielectric constant.

Low signal loss: This is a major advantage of these boards. Due to the materials used in its manufacturing, Taconic lamination has low dielectric signal loss.

Wide dielectric constant: Taconic PCB provides a wide range of dielectric constants. This makes it an ideal choice for various applications.

Low dissipation factor: This type of circuit board has a low dissipation factor and is a good insulation material. The low dissipation factor represents an effective insulator system.

Excellent dimensional stability: The Taconic PCB can maintain its original size even when heated. Engineers use this board for applications that may be exposed to different temperatures.

Low moisture absorption: This board has low moisture absorption. Therefore, it can be used in humid environments. Moisture is not conducive to the durability of PCBs, so PCBs with low moisture absorption are an ideal choice.

Factors to Consider in Taconic PCB Hybrid Manufacturing

In the mixed manufacturing process of Taconic PCB, some factors need to be considered, namely Taconic RF 35 pcb.

Drilling parameters: Drilling parameters are a key factor to consider as they determine the correct drilling formation. The feed rate and speed of the drill bit are determined by the stacking material. In the mixed manufacturing process, it is necessary to adjust the speed and feed rate. For example, certain components can emit a large amount of heat, leading to deformation.
