PCB Piezotronics launches a new 112A06 wide temperature range, charge output piezoelectric pressure sensor. This sensor has an ultra wide operating temperature range from -240 ° C to 350 ° C, further expanding the PCB ® Low temperature and high temperature pressure sensor product lines.

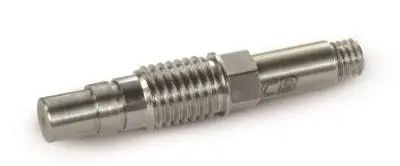

112A06 pressure sensor
112A06 adopts an airtight packaging design, with a shell made of 17-4 stainless steel and a diaphragm made of 316L stainless steel. The signal is output through a 10-32 Jack electrical connector. The calibration range of 112A06 is 5000 psi (with calibration certificates for 500 and 100 psi ranges), and the maximum measured pressure is 15000 psi.
112A06 Sensor Features:
• Adopting UHT-12 ™ Crystals are designed as sensitive components for higher precision and lower noise measurements at high temperatures;
• Wide working temperature range, covering -240 ° C to 350 ° C;
• Resonant frequency>200 kHz;
• High sensitivity: 2.6 pC/psi;
• Equipped with acceleration compensation (0.01 psi/g)
112A06 Sensor Application:
Thermodynamics&Thermoacoustic Measurement
Rocket engine testing
• Combustion Dynamics
• Steam pipeline monitoring
Measurement of pressure pulsation on compressors or pumps
• Dynamic pressure measurement at other high temperatures
About PCB
PCB Piezotronics, Inc. was founded in 1967 and is headquartered in Buffalo, New York, USA. It has been in China for over 30 years now. In 2013, its subsidiary in China, PCB Piezoelectric Sensor Technology (Beijing) Co., Ltd., was established in Beijing. In addition, sales and technical support personnel are available in several cities to provide nearby services.
PCB Corporation is dedicated to the research and development of piezoelectric measurement technology, and is a high-tech company that researches, develops, and manufactures impact, vibration, force, pressure, strain, torque, acoustic sensors, and measuring instruments. The product is widely used in fields such as aviation, aerospace, shipbuilding, petrochemicals, hydropower, electricity, light industry, transportation, and vehicles, and enjoys a high reputation worldwide. In addition to general products, PCB ® also manufactures customized products according to user requirements to meet the needs of different applications and customer groups. Customer satisfaction has always been our service philosophy.
